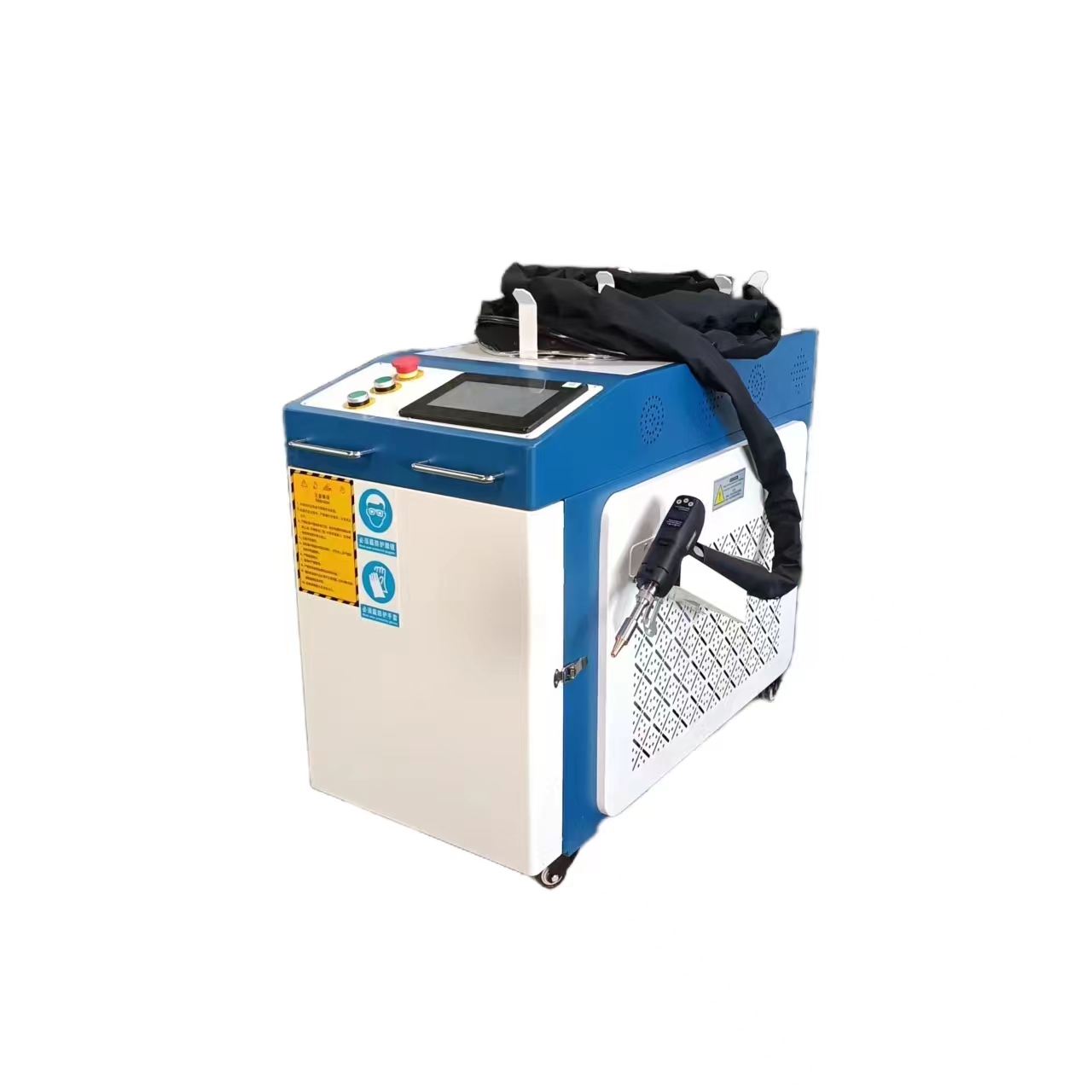

Model JM-1500W

Laser type: continuous fiber laser

Rated output power 1500W

Power adjustment range: 0%~100%

Laser center wavelength 1080 ± 5nm

Continuous output mode

Modulation frequency 50-5KHZ

Power instability ± 1.5%

Fiber optic output interface QBH

Indicator system red light

Fiber length 10m

Welding gun cable length 10m

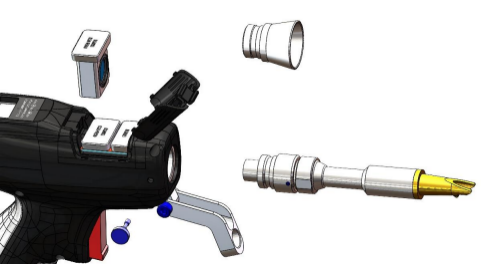

Welding gun type: left and right swinging galvanometer welding head

Collimating focal length 60mm

Focusing focal length 150mm/200mm

Wire feeding diameters of 0.8, 1.0, 1.2, 1.6

Welding gun weight 0.8kg

Protective gas method coaxial protection

The width of the weld seam can be adjusted by 0-6 mm

Water flow rate 2L/min+15L/min

Product structure integrated/split type

The product size is based on the actual model

The product weight is based on the actual model

Working environment temperature -10 ℃~40 ℃

Working environment humidity<70%

Working voltage single-phase 220VAC

Whole machine power<8kw

samples：
