Pneumatic Type ATC Wood Design Machine
Pneumatic Type ATC Wood Design Machine
Specifications

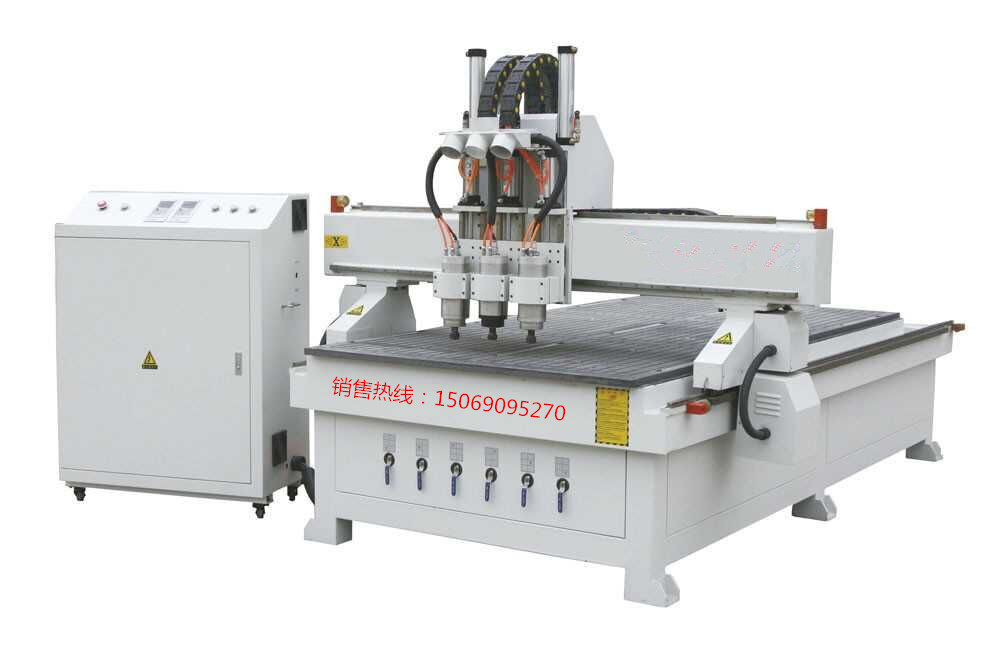

Highest Efficiency Door Processing 3 Head Pneumatic Type ATC Wood Design Machine CNC Router With Cheaper Price
Highest Efficiency Door Processing 3 Head Pneumatic Type ATC Wood Design Machine CNC Router With Cheaper Price
*China water cooling spindle,high quality and 24h continuously work.
*Hiwin square rail,good occlusion and rigidity,no distorsion for long time use.
*High speed gear rack transmission for XY axis, and high precision ballscrew transmission for Z axis,ensuring high speed and high precision at same time.
*Pneumatic atc for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table forengraving,saving time and workforc.
Parameter
|
Item |
Specification |
|
|
Model |
QL-1325-3 |
|
|
Working area |
1300*2500*200mm |
|
|
Max running speed |
30m/min |
|
|
Motor |
stepper |
|
|
Driver |
stepper |
|
|
Transmission way |
Rack gear |
|
|
Table structure |
vacuum |
|
|
Working voltage |
AC220V/380V, 50/60Hz |
|
|
Guide way |
Square rail |
|
|
Spindle power |
3kw water cooling spindle(or 3.5kw and 4.5kw air cooling spindle) |
|
|
Spindle speed |
0-24000rpm/min or 0-18000rpm/min |
|
|
Command Code |
G Code*.u00*.mmg*.plt |
|
|
Control System |
DSP/Ncstudio |
|
|
Spindle changing mode |
pneumatic |
|
|
Max working speed |
20m/min |
|
|
Working accuracy |
±0.005mm |
|
|
Repositioning Accuracy |
±0.05mm |
|
|
Running Circumstance |
Temperature: 0°C~45°C Relative humidity: 30%~75% |
|
|
Packing |
Wooden boxes or as requested |
